Revised diagnosis

A small therizinosaurian possessing the following autapomorphies among Therizinosauria (newly added features noted with an asterisk*): postorbital process of frontal large and abruptly transits from orbital rim [13]; parietal with a long and sharp anterior process [13]; ventral ramus of parietal squamosal process extremely long [13]; and external mandibular fenestra deep dorsoventrally and extremely posteriorly located [13]; four fused caudal dorsals [3]; pygostyle incorporating up to seven caudal vertebrae [3]; “rectangular buttress” on MCII expressed as a triangular flange [3]; elongate lateral articular surface on manual phalanx II-1 [8]; manual ungual of digit II shorter than digit III*; subequal length of pre- and post-acetabular process of ilium*; equidimensional pubic peduncle of ilium (anteroposterior width subequal to mediolateral width)*; obturator process of ischium sinusoidal, with ventrally deflected distal portion [3]; ischial boot approximately twice anteroposterior depth of distal shaft [3]; low ridge on anterior femoral shaft extending proximally from medial condyle [3].

Cervicals

Four incomplete cervical vertebrae are present, exposed in dorsal and lateral view (Fig 1A and 1B), and all of them are poorly preserved. Given that these cervical vertebrae are not elongate, they likely derive from the posterior cervical series. The total number of cervicals for B. inexpectus is unknown, but based on the closely related taxa Beipiaosaurus sp. (STM 31–1) [12] and Jianchangosaurus [20], we estimate around nine or 10. The later-branching therizinosaurians, ‘Nanshiungosaurus’ bohlini [22] and Neimongosaurus [23]), have 11–12 and 14 cervicals, respectively. An elongate neck with more than 10 cervicals is also seen in closely related oviraptorosaurians such as Caudipteryx, Citipati, and Khaan [24, 25].

In dorsal view, the neural arch is wider than its corresponding centrum, and both the pre- and postzygapophyses are lateral to the centrum, as in other therizinosaurs [19, 23, 26]. The neural spines of the cervicals are extremely low, anteroposteriorly short [8], and mediolaterally compressed with a straight dorsal border, in lateral view. Low and undeveloped cervical neural spines are a characteristic trait observed in many other therizinosaurians, such as Nothronychus [27], Neimongosaurus [23], Jianchangosaurus [20], and Falcarius [19]. The neural spine is centered on the neural arch, making an ‘X’-shape in dorsal view.

The articular surfaces of the postzygapophyseal facets face ventrally and are rounded. The prezygapophyses are robust and bear oval-shaped articular surfaces, similar to Jianchangosaurus [20]. In dorsal view, there is an intraprezygapophyseal lamina between the prezygapophyses, which only reaches the posterior margin of the articular facets. Between the postzygapophysis, there is a web of bone connecting the two parts called the intrapostzygapophyseal lamina (sensu Wilson, 1999 [28]), which is seen in other therizinosaurians such as Falcarius and Neimongosaurus, and is present on a broad distribution of coelurosaurs including ornithomimids, dromaeosaurs, troodontids, and oviraptorosaurs [19]. This lamina restricted the ligamentum elastici to a small fossa at the base of the neural spine (the interspinous fossa). As in Falcarius and Jianchangosaurus, there are prominent epipophyses above the postzygapophysis [19, 20].

The cervical centra of B. inexpectus are amphicoelous. Most therizinosaurians have amphicoelous cervical centra (e.g., Falcarius [19]; Martharaptor [29]; Jianchangosaurus [20]; Neimongosaurus [23]; and Nothronychus [27]); or amphiplatyan centra (Alxasaurus [6]; and ‘Nanshiungosaurus’ bohlini, [30]). The preserved third posterior cervical centrum is only slightly longer than the longest preserved posterior dorsal centrum (3%). However, despite shortening of the cervical centra posteriorly, all cervical centra remain anteroposteriorly longer than the preserved dorsal centra in B. inexpectus, as in other therizinosaurs. In Neimongosaurus, the penultimate cervical centrum is 17% longer than the longest dorsal centrum [23], and it is 25% and 12.5% longer in larger and smaller individuals, respectively in Alxasaurus [6].

Ribs are not fused to posterior cervicals, an ontogenetically variable feature that might strictly reflect the early ontogenetic stage of B. inexpectus. This condition is also seen in Jianchangosaurus [20] and B. sp. [12]. Cervical ribs are slender and long, longer than corresponding centra. Ribs elongation is shared with B. sp. [12] and Jianchangosaurus [20], but contrasts with Neimongosaurus [23] and Alxasaurus [6], which bear short and broad cervical ribs.

Dorsals

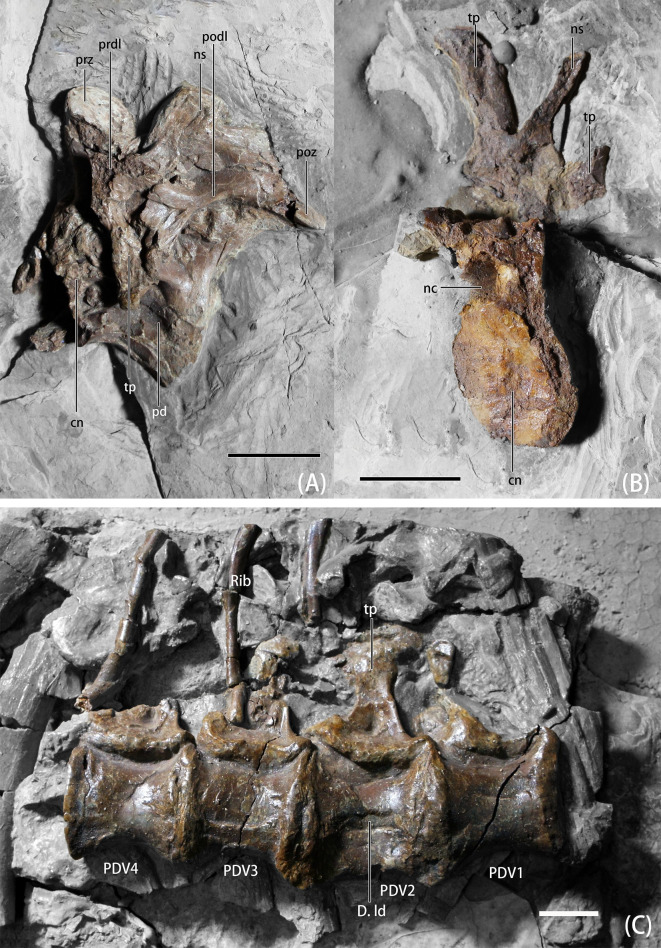

Six dorsals are preserved, four of them are preserved in articulation and exposed in lateral view (Fig 2C). These vertebrae were figured in Xu et al. ([8], Fig 1). The remaining two preserved dorsal vertebrae are preserved in anterolateral and lateral view (Fig 2A and 2B) and were discovered isolated along with additional materials of the holotype specimen and published in Xu et al. [11]. The four articulated dorsals are interpreted as deriving from the posterior portion of the series, and the isolated two dorsals are interpreted as deriving from the anterior to middle portion.

Neural sutures appear to be at least partially fused in the more middle dorsals (Fig 2A and 2B). The one preserved in lateral view is interpreted as an antero-middle dorsal based on its lamination, the low neural spine, arched postzygapophyses, and the longer centrum (Fig 2A). The lamina and fossa system are developed, yielding pre- and postzygadiapophyseal laminae. The well-developed lamina and fossa system is also a feature that can be seen in many therizinosaurians, including Falcarius [19], Jianchangosaurus [20], Lingyuanosaurus [21], Shuzhousaurus [30], Alxasaurus [6], Neimongosaurus [23], and Nanshiungosaurus [22]. In lateral view, the centrum is sub-rectangular in shape, and the ventral border is concave slightly, making the articular facets relatively expanded dorsoventrally. There is a depression on the lateral surface, positioned under the transverse process. The same feature can also be seen in the posterior dorsals.

The vertebra preserved in anterolateral view is interpreted as a middle dorsal based on the height of the neural spine and upswept angle of the transverse processes (Fig 2B). The shape of the neural spine is gracile, and its dorsal surface is slightly expanded anteroposteriorly. In comparison with the antero-middle dorsal, the neural spine of this vertebra is dorsoventrally taller and approximately the same dorsoventral height as the centrum. In this respect, the neural spine of B. inexpectus is more similar to that of later-branching therizinosaurians such as Nothronychus [31], Alxasaurus [6], ‘Nanshiungosaurus’ bohlini [22], Neimongosaurus [23], and Erliansaurus [32], which possess relatively taller neural spines. Whereas in other earlier-branching members such as Falcarius [19], Jianchangosaurus [20], and Lingyuanosaurus [21], dorsal neural spines are robust, anteroposteriorly broaden, and reduced in height. The neural canal in anterior view is pentagon-shaped and dorsoventrally tall. Parapophyses are not prominent, and are present as a depression on the anterior rim, flush with neural arch. In anterior view, the articular facets of the centra are oval in shape and dorsoventrally high. Articular facets are slightly concave, suggesting an amphicoelus condition.

Neural sutures are unfused in the preserved posterior dorsals (Fig 2C), and may also be incompletely fused in the more anterior dorsals (Fig 2A and 2B). The neural arches of the four articulated dorsals are crushed and the neural arch is exposed only in ventral view. The transverse processes are elongate (i.e., the mediolateral length of the transverse process is approximately equal to the dorsoventral height of the corresponding centrum). In ventral view, the transverse process narrows in mid-shaft and slightly expands anteroposteriorly at the distalmost point. Parapophyses are not prominent, and present as a depression on the anterior rim, flush with neural arch. Posterior dorsal centra are spool-shaped generally and subrectangular in lateral view, as in Falcarius [19] and Neimongosaurus [23]. Centra are apneumatic, but do bear a lateral depression.

Ribs of dorsals are incomplete. However, it can be observed that they are elongate, extremely slender, and subtriangular in cross-section (Fig 4C).

Sacrals

The total number of sacrals in B. inexpectus is currently unknown. The last three sacrals are preserved in the material found within the re-excavation. The antepenultimate and the penultimate sacrals are fused. However, the posteriormost centrum is separated. All of the sacral centra are preserved in ventral view with only the dextral sacral ribs attached (Fig 3). The centra of the posteriormost three sacrals are subrectanglar in lateral view, unlike the sacrals of Falcarius, which are strongly medially constricted producing an hourglass-like shape in ventral view [19]. The sacral ribs of the three posteriormost sacrals are oriented laterally and expand anteroposteriorly. They are robust and their length is subequal to the width of their centra.

Caudals

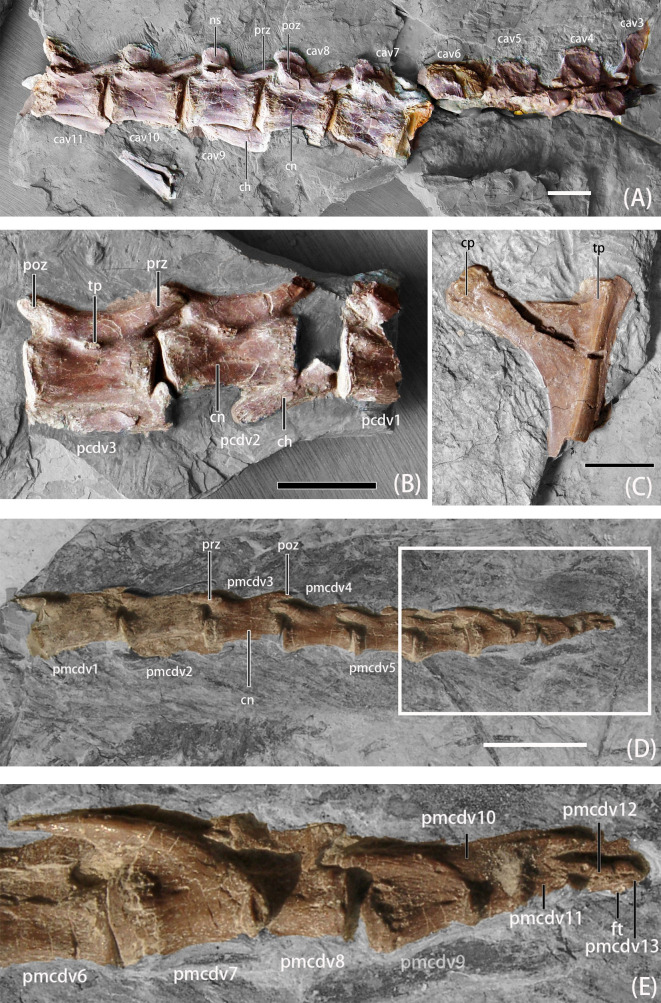

The majority of caudal vertebrae were recovered among the second set of materials published in 2003 (Figs 3 and 4A and 4B, 4D and 4E). These constitute a nearly complete tail with 30 caudals [11]. However, some caudal vertebrae are not preserved, thus the total number of caudals of B. inexpectus was more than 30. The early-branching therizinosaurian, Falcarius is estimated to have about 35 caudal vertebrae [19]. In later-branching therizinosaurians, such as Neimongosaurus [23] and Alxasaurus [6] an incomplete series of 22 and 21 caudals are preserved, respectively.

Most caudal vertebrae are transversely compressed and exposed in lateral view. All of the caudal centra are apneumatic, amphicoelous, and constricted medially and ventrally. The anterior caudal centra are relatively robust with a subequal height to length ratio. Caudal centra gradually become anteroposteriorly elongate, as in other early-branching therizinosaurians (e.g., Falcarius [19]), as well as theropods generally. This condition is different from that observed in late-branching therizinosaurians, such as Alxasaurus [6] and Northychus [31], which possess anteroposteriorly abbreviated distal caudals. Unlike in other portions of the vertebral column, the neural arches and centra are fused in the caudals.

Neural spines in the anterior portions of the caudal series are subequal to the height of centra and reduce in height posteriorly. On the preserved first through third neural spines, the neural spines are less anteroposteriorly expanded, slightly posterodorsally oriented, and possess a convex dorsal margin. The neural spines become more box-shaped in lateral view and also shorten in anteroposterior length, maintaining their relative proportions. Neural spines of mid-caudal vertebrae are more posteriorly positioned, becoming flush with the postzygapophysis (Fig 4A). Further posteriorly, neural spines are absent (Fig 4B).

The pre- and postzygapophyses are steeply elevated and posteriorly inclined, as in most theropods generally, but more prominently in therizinosaurians and oviraptorosaurians [3]. In anterior caudal vertebrae, the prezygapophyses are more robust with oval articulation facets, and gradually become more slender and tapering distally. Prezygapophyses are elongate, approximately half the length of the neural arch and longer than the postzygapophyses. Postzygapophyses are mostly crushed or not visible in anterior to mid-caudal vertebrae. In posterior vertebrae, the postzygapophyses remain relatively short. The transverse processes are mostly crushed or incomplete. When present, they reduce from anteroposteriorly elongate and dorsoventrally thin processes to only small tubercles at the base of the middle neural arches along the axis. Posteriorly, the transverse processes become more anteriorly positioned.

The five posteriormost caudal vertebrae are fused together in a pygostyle-like structure (Fig 4D and 4E) [11], with ventrally concave and dorsally convex margins, as well as a blunt posterior end. A prominent line of fusion is still visible between the anterior two centra on the “pygostyle,” whereas the last two caudal vertebrae are completely fused, and can only be distinguished by a well-developed tubercle (Fig 4E). The neural spines of these five caudals are fused, and the margins are obscured. The phylogenetic distribution of this feature in other therizinosaurians is currently unknown, because the posteriormost portion of the caudal series is not definitively preserved in other therizinosaurians. When compared to the pygostyle-like structures exhibited by oviraptorosaurs, the “pygostyle” of B. inexpectus appears morphologically more similar to that of birds, in being more co-ossified and possessing stronger dorsally curved axes [11, 33].

Chevrons

Some chevrons are preserved in articulation with the caudals; they are approximately the same length as the centra with which they once articulated (Fig 4A and 4B). The proximal articular facets are concave in dorsal view, with a more extended posterior process. The shafts of the chevrons are straight as in Neimongosaurus [23], but different from the morphology of Falcarius and Alxasaurus, which are posteriorly deflected. Some of them possess an anterior tuberosity [19].

Furcula

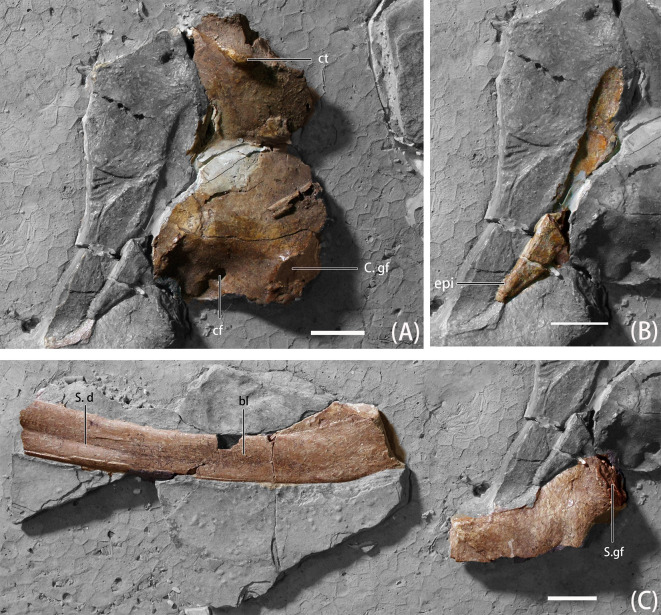

A partial right epicleidium of the furcula and its exquisite impression are preserved. Together, these demonstrate that it is a widely arched bone with an oblate-shaped cross-section (Fig 5B) [8]. Although Xu et al. [8] noted the absence of the hypocleidium on the furcula of B. inexpectus, Zanno [19] suggested the incomplete impression of the furcula and poor development of this feature in other taxa (i.e., Falcarius, [2]; Nothronychus [31]), makes this absence uncertain. In therizinosaurians, only Neimingosaurus lacks the development of hypocleidium entirely to date [19, 23].

The intraclavicular angle of B. inexpectus is ~145 degrees, similar to that of Neimongosaurus, which is about 135 degrees [23, 31], and unlike that of Falcarius, which is more acute (~104 degrees [2]). The epicleidea of B. inexpectus is straight, not bowed at its termini. In general shape, the furcula of B. inexpectus most closely resembles that of Neimongosaurus [23], as opposed to Nothronychus and Falcarius, which display at least some lateral deflection of the epicleidal termini [19, 31]. The distal termini of B. inexpectus tapers to a point, as in Jianchangosaurus, and unlike in Neimongosaurus, which bears a robust epicleidium with blunt distal ends [23]. In general, the furculae of therizinosaurians including B. inexpectus, Falcarius, Nothronychus, and Neimongosaurus are gracile and V-shaped.

Coracoid

Both coracoids are preserved, yet incomplete. The right element is more complete than the left element (Fig 5A). The coracoids of B. inexpectus are subrectangular, which is a feature also seen in most other therizinosaurians and some maniraptoran theropods [8], except the coracoids of Jianchangosaurus, which are more similar to those of ornithomimosaurs in having a semicircular shape [20]. The anterior region is anteroposteriorly shortened and elongated dorsoventrally as in Falcarius [2], and unlike Neimongosaurus, in which the anterior portion is plate-like and deflected posteromedially [23]. The curvature is relatively continuous as in Falcarius [2], although not as strongly recurved, and unlike the hinge form in Neimongosaurus [23]. There is a pronounced, nearly crest-shaped coracoid tubercle [8] similar in form to Falcarius [19], that is best-preserved on the left coracoid, unlike the moderately developed coracoid tubercle in Alxasaurus [6]. As in Alxasaurus and Falcarius, the coracoid tubercle occurs close to the ventral margin of the glenoid [2, 6]. The coracoid comprises slightly more than half of the glenoid. This condition is intermediate between that of the early-branching Falcarius [2], in which the scapular portion is greater, and Neimongosaurus, in which the coracoid comprises about two-thirds of the glenoid [23]. Dorsal to the glenoid, there is a coracoid foramen, similar to that of Falcarius morphologically [2].

Scapula

A partial right scapula is preserved in medial view. There is damage to the proximal and distal ends (Fig 5C). The scapula and coracoid are not fused, which is a feature present in early-branching therizinosaurians, including Falcarius [2], Jianchangosaurus [20], Martharaptor [29], as well as some later-branching taxa, such as Nothronychus [27] and Erliansaurus [32]. In other late-branching therizinosaurians, including Suzhousaurus [30], Neimongosaurus [23], Segnosaurus [4], and Therizinosaurus, the scapula and coracoid are fused. However, since IVPP V 11559 is a skeletally immature individual, the unfused condition might be the result of early ontogenetic stage. The blade is long and slender, with a slight distal expansion. Expansion of the distal blade can also be observed in Falcarius [2], Alxasaurus [6], Neimongosaurus [23], and Erliansaurus [32]. The reverse condition, scapula blade tapering of the distal end, is noted for later-branching therizinosaurians, such as Nothronychus and Segnosaurus [2, 4, 26].

The cross-section of the proximal end of the blade is flat and thin, gradually decreasing in dorsoventral height. There is a depression that begins midway along the medial surface of the scapular blade on B. inexpectus. This feature may be enhanced by or entirely the result of crushing. Such a depression is absent on Falcarius, Neimongosaurus, and Erliansaurus. The cross-section of the proximal blade is subtriangular, as in Falcarius [2]; with the transversely wider ventral base formed by a ridge in the medial surface. The glenoid fossa is a kidney-shaped facet that spans both the scapula and coracoid. It is oriented posteroventrally, similar to the condition found in early-branching therizinosaurians such as Falcarius [2] and Jianchangosaurus [20], and unlike the glenoid of the relatively late-branching Neimongosaurus, and Nothronychus, which faces more laterally [23, 26].

Humerus

Both humeri are preserved. The right one is complete and preserved in anterior view; however, its proximal and distal ends are separated (Fig 6A and 6B). Only the distal part of the left humerus, preserved in posterior view, remains (Fig 7B). The humerus is shorter than the scapula, and relatively straight. In early-branching therizinosaurians, (e.g., Falcarius), the humerus is slightly sigmoidal, more similar to that of oviraptorids and Deinonychus [2]. Whereas, in late-branching therizinosaurians, the humerus varies from relatively straight [5, 26] to strongly sigmoidal [2, 4].

There is a pointed internal tuberosity in the proximal end of the humerus, with a depression to separate the tuberosity and humeral head, which is also present in most therizinosaurians and Mononykus [8, 35]. This depression extends across the posterior aspect to the proximal surface [8], as in Neimongosaurus, Segnosaurus and Erlikosaurus, [2]. However, we note that poor preservation of the humerus suggests caution in interpreting the morphology of the internal tuberosity, humeral head, and depression separating these features. In most therizinosaurians, the humeral head is hypertrophied both posteriorly and dorsally, appearing bulbous in form [2], whereas in IVPP V11559, only the dorsal extension of the humeral head can only be confirmed due to the poor preservation. Only the base of the deltopectoral crest is preserved. It extended from the humeral shaft 90 degrees. By observing the broken scar, the deltopectoral crest should be about one-third of the humeral length, similar to the ratio of Falcarius, Jianchangosaurus, Neimongosaurus, and Erliansaurus [2, 20, 23, 32], and shorter in form than in Segnosaurus and Therizinosaurus [4, 5].

As in other early-branching therizinosaurians, the proximal and distal ends of humerus are moderately expanded, narrowest in mid-shaft [20]. The ulnar and radial condyles are positioned anteriorly as in most therizinosaurians [2, 8]. Close to the lateral surface of distal ends, there is a significant posterior tuberosity opposite the radial condyle. Next to the tuberosity and extending laterally is a dorsoventrally elongate ectepicondyle. The entepicondyle is hypertrophied and extends anterolaterally. On the posterior surface of the distal end, there is a ridge originating from the hypertrophied entepicondyle. Concordant with this ridge, there is a groove on the posterior surface closer to the medial side, which separates the condyles of the distal end.

Ulna

Both ulnae are partial and preserve the distal aspect. The left ulna is more complete including the posterior surface (Figs 6B and 7D). Although a proximal end of the right ulna was noted as being present by Xu, et al. [8], the element could not be found at the IVPP during this study. Based on the preserved portions, the ulna is estimated to be shorter than the humerus, as in most therizinosaurians. The ratio of the ulna to the humerus in early-branching therizinosaurians such as Falcarius and Jianchangosaurus is 77–78% [2, 20], and B. inexpectus might be close to this ratio. Among late-branching therizinosaurians the ratio of these elements ranges from 72% in Nothronychus [26] to as elongate as 85% in Erliansaurus [32]. The preserved parts and the impression show that the mid-shaft of the ulna is straight and not bowed, like in most other therizinosaurians such as Jianchangosaurus, Nothronychus, Erliansaurus, and Therizinosaurus [20, 26, 32], but different from that of Falcarius, which is bowed [2]. The cross-section of the ulnar shaft of Beipiaosaurus is oval medially, becoming flattened near the distal end and is semicircular in distal view. There is a prominent, medially projecting tubercle on the distal end, which is anteroposteriorly flattened, similar to Falcarius [2].

Radius

Both distal radii are preserved, along with the proximal end of the right radius (Figs 6B and 6C and 7D). Although the diameter of the radius is larger than the ulna, it is still gracile in shape. A gracile radius is also present in Falcarius, Jianchangosaurus, and Neimongosaurus [2, 20, 23]. The radii of later-branching therizinosaurians are more massive and robust [4, 5]. Based on the preserved parts and the impression, the radius of B. inexpectus is a relatively straight element, like Falcarius and Jianchangosaurus [2, 20]; whereas in Therizinosaurus and Neimongosaurus, this element is relatively sigmoidal [2, 4, 23]. The proximal end of the radius is oval and medially deflected to form the proximal fossa. The cross-section of the shaft is subcircular, becoming subtriangular and mediolaterally expanded approaching the distal end, which flattens medially to articulate with the distal ulna.

Carpus

Nine elements of the carpus are preserved. Present are distal carpals II, III, and IV, the intermedium, and the radiale of the left wrist, and distal carpal III and IV, the intermedium, and the radiale of the right wrist (Figs 6D and 7C and 7E).

The radiale of the left manus is V-shaped, with a depression on the proximal end, near the contact with the radius (Fig 7E; [8]). Positionally, the right radiale is also preserved near distal carpal III, and has a rod-like shape (Fig 6D), but the poor preservation hinders further identification and description. Both intermedia are preserved. Considering both of the elements, the intermedium of B. inexpectus is a flat and round element with a wedge-shaped, narrower end. Intermedia are either fragmented or not exposed well, so the articulation with the other carpals, and the precise morphology, are difficult to identify.

There are morphological and positional discrepancies in the preserved carpals that prevent us from confident identification of these elements. We present both hypotheses here.

If we identify the distal carpals by their preserved position relative to the metacarpals, the distal carpal II of B. inexpectus is large and oval [8], and it is unfused to distal carpal III. Whether this is related to ontogenetic stage is unclear. In Falcarius, distal carpals II and III are partially fused dorsally, and together these elements make up the semilunate [2]. The distal carpals of B. inexpectus differ from those of Alxasaurus, in which the distal carpal II is the largest [6]. In B. inexpectus, distal carpal III is larger than distal carpal II. Distal carpal III is slightly elongate and caps primarily the proximal surface of metacarpal III, and touches the proximal surface of metacarpal II [8]. In proximal view, distal carpal III is convex dorsally and ventrally, with a well-defined trochlear groove for the radiale. Although the semilunate (distal carpal III) is smaller and the anterior process is blunter and more reduced, the overall shape of it is identical to that of Deinonychus [8, 36]. In early-branching therizinosaurians such as Falcarius, the fused distal carpal II and III is larger and more robust than other therizinosaurians and dromaeosaurs [2].

However, we recognize a different possibility for the identifications of distal carpal II and III. Morphologically, it seems that the carpal element termed the “semilunate” in Xu et al. [8] and also labelled as “dc III” on our intext figures is most similar to the single carpal distal carpal II in Falcarius, and that the “semilunate” carpal structure would be comprised of both distal carpal II and distal carpal III in early branching therizinosaurs [2, 37]. Also, based on the size ratio of the distal carpals and the morphology of the “semilunate” (distal carpal III) in B. inexpectus, this element is more identical to that of the distal carpal II of Alxasaurus [6, 37]. In this case, it is highly possible that the positionally consistent distal carpal II and III are translocated during the preservation or the preparation, and they are actually distal carpals III and II, respectively.

The distal carpals IV are also incomplete on both manus. The distal carpus IV is a proximodistally thin element, and tapers on the lateral end giving it a subtriangular shape. The articular facet is slightly concave. Distal carpal IV is missing in other therizinosaurian taxa, so there is little else to support the identification of this element.

Metacarpus

All the metacarpals of B. inexpectus are preserved, except for the left metacarpal IV, (Figs 6D and 7A). In general, metacarpal elements of B. inexpectus resembles to those of Falcarius [2].

Metacarpal II is the most robust and shortest of the metacarpals, only half the length of metacarpal III. The cross-section is subtriangular with a laterally flattened facet for articulation with metacarpal III. There is a concavity on the proximal surface of metacarpal II that extends to the dorsal surface between the medial process and the dorsal process, forming a notch. There are three processes on the proximal articular surface, which make a triradiate shape. This condition is also present in the early-branching therizinosaurian Falcarius [2]. Among the three processes, the medial process extends farthest to support the dorsomedial extension of distal carpal I. The same condition can also be seen in Falcarius and Jianchangosaurus [2, 20], but not as extremely as in Erliansaurus [32]. The lateroventral surface of the proximal end of metacarpal II is pointed and extends to underlie the base of metacarpal III; this is known as the “rectangular buttress”. This character was first described in Alxasaurus and as a synapomorphy for Therizinosauroidea [6]. Although this buttress is also present in the earlier-branching Falcarius, it is more moderate [2]. The distal end of metacarpal II is slightly broader and asymmetrical, with a more extensive lateral condyle and a medially rotated axis. This feature is also seen in Falcarius, Jichangosaurus, and Erliansarurus [2, 20, 32]. As in Falcarius and Therizinosaurus, the distal end of metacarpal II lacks collateral ligament pits and a dorsal extensor pit.

Metacarpal III is the longest of the metacarpals, and has transversely expanded and robust ends. The shaft is rectangular proximally and becomes oval and dorsoventrally flattened in the midshaft. The proximal articular surface is rectangular and convex, unlike the proximal articulation surface of metacarpal II, which is concave. Each margin of the rectangular proximal surface is divided by rounded tuberosities, and a dorsolateral tuberosity extends to overhang the proximal end of metacarpal IV. This morphology is similar to that of Falcarius [2]. The distal end of metacarpal III is asymmetrical, with a vertically oriented, rounded lateral condyle and a larger medial condyle that is angled outward. A larger medial condyle is also described in Falcarius and Erliansaurus, but in Falcarius it is less prominent [2, 32].

Metacarpal IV is only preserved on the right manus. By observing the impression, metacarpal IV can be inferred to be a thin, long, and straight element, more gracile than metacarpal II and metacarpal III. This character is similar to that of Faclarius morphologically [2]. The length of metacarpal IV is about 75% of Metacarpal III. The shaft of metacarpal IV is oval in cross-section. The proximal end of metacarpal IV is convex and subtriangular; whereas the distal end is slightly bowed toward metacarpal III.

Manual phalanges

The left arm of B. inexpectus is more complete than the right one. There are many missing and incomplete right phalanges, but clear impressions of these missing elements remain (Figs 6D and 7A). There are well-developed ligament pits on the lateral sides of distal ends. All the manual unguals are deep, compressed mediolaterally, and curved strongly [6, 8]. As in Falcarius, the collateral grooves of the manual unguals are not continuous with large depressions in the medial and lateral surface of the proximal aspect [2]. In Lingyuanosaurus and Jianchangosaurus these features connect [21]. Collateral grooves rise dorsally toward the distalmost tip, as in many other therizinosauroids, including Lingyuanosaurus, Alxasaurus, and Therizinosaurus [6, 21]. Manual unguals are subequal in length with the penultimate phalanges in B. inexpectus. Unlike, in the therizinosaurids Nothronychus and Therizinosaurus, in which the unguals are longer than the penultimate phalanges ([2], Fig 5; [31], Fig 1).

Digit II is the shortest of the three digits, but phalanx II-1 is the longest and the most robust phalanx. The same condition can also be seen in Jichangosaurus and Falcarius [2, 20]. The proximal articular surface of phalanx II-1 is subtriangular and taller than wide. Although the midshaft is missing, from the impression and the preserved distal shaft, it can be inferred that the midshaft is straight with a subcircular cross-section. The distal ginglymoid articular surface is symmetrical with a deep intercondylar groove, and the condyles are more extensive ventrally than dorsally. Collateral ligament pits are well developed and positioned more dorsally. The manual ungual of digit II of most therizinosaurians is the longest and largest including Jianchangosaurus [20], Alxasaurus [6], and Erliansaurus [32]. However, the manual ungual II of B. inexpectus is slightly shorter than manual ungual III, and it possesses the strongest degree of curvature. As in other early-branching therizinosaurians, B. inexpectus also possesses a deeper proximal articular surface and more massive flexor tubercle similar to that of oviraptorosaurians [2, 6, 32]. The flexor tubercle and the ventral margin of the proximal articular surface of phalanx II-2 are separated by a narrow and deep groove.

Digit III is the longest digit, phalanx III-1 is about 80% length of phalanx II-1, and phalanx III-2 is only slightly shorter than phalanx II-1. Phalanx III-1 is stout in shape, with a hexagonal proximal surface. In proximal view, the dorsal intercondylar tuberosity is less pronounced, but the ventral intercondylar tuberosity is relatively robust. On the distal end, collateral ligament pits are poorly developed and the pits are positioned nearly centered on the condyle. In phalanx III-2, the cross-section of the proximal end is oval, and dorsoventrally taller than wide. The shaft of phalanx III-2 of B. inexpectus is straight, and gradually tapers in dorsoventral height toward the distal end. Nonetheless, it remains taller than wide in cross-section. On the distal end of phalanx III-2, the intercondylar groove is deep, the condyles are taller than the height of the mid-shaft, and the collateral ligament pits are located more dorsally. These features of the distal end are characteristic of penultimate phalanges [2]. Manual ungual III is less re-curved than manual ungual II, but longer. A longer second claw is a character similar to that of Archaeopteryx and Protarchaeopteryx [8, 38]. The proximal articular surface and flexor tubercle of phalanx I-3 are divided by a broad and shallow notch. The flexor tubercle of manual ungual III is narrower and smoother than that of manual ungual II, and lacks the distal pits present in manual ungual II. On the tip of the left ungual III, there is a dorsoventrally flat extension that might represent preservation of the keratin sheath. If so, the claw sheath of B. inexpectus seems to be more flattened, rather than a sharply pointed structure, but this might be caused by taphonomic processes.

Digit IV is relatively gracile, with extremely shortened phalanges IV-1 and phalanx IV-2. When combined, the length of these two phalanges is equal to that of phalanx IV-3 [8]. Digit IV is in poor condition, most parts of phalanx IV-1 and phalanx IV-2 are missing, so it is difficult to observe any detailed structure. Phalanx IV-3 is relatively complete. The shape of phalanx IV-3 is gracile and elongate, with a mediolaterally narrow and oval cross-section. The collateral ligament pits of the distal end are well developed and located dorsally. Phalanx IV-4 is the smallest manual ungual of the three digits. The flexor tubercle, the groove that separates it from proximal joint surface, as well as the lateral sulci of phalanx IV-4, are the most poorly developed of any manual ungual.

Ilium

The left ilium of B. inexpectus is partially preserved and exposed in medial view (Fig 8A and 8B). The right ilium was found in the re-excavation. It is relatively complete and exposed in lateral view (Fig 7C). The ilium is parallelogram-like in shape, similar to that of dromaeosaurids and early-branching birds, but different from that of late-branching therizinosaurians, which have an ilium more similar in shape to sauropods [8, 39]. The length of the pre- and postacetabular portions of the ilium are subequal, as in many oviraptorosaurians and early-branching ornithomimosaurians [3, 8, 40, 41]. The relative proportion of the pre- and postacetabular aspects of the ilium is difficult to quantify in other therizinosaurians except for some taxa, such as Falcarius, for which the preacetabular portion is approximately 30% longer than the postacetabular portion. Nothronychus and Segnosaurus also possess longer preacetabular portions, but the ratio is not as extreme as in Falcarius [19, 31].

The preacetabular blades of therizinosaurians are dorsoventrally deep, dubbed the “altiliac” condition, and bear a pointed ventral extension. This extension is extreme in Lingyuanosaurus, Segnosaurus, and Nanshiungosaurus, extending ventral to the dorsal margin of acetabulum [3, 21, 42]. However, this character is less significant in B. inexpectus, in which case the ventral aspect of the preacetabular portion of the ilium only extends slightly ventral to the dorsal acetabulum [11]. Early-branching therizinosaurians such as Falcarius and Jianchangosaurus lack this feature [19, 20]. The preacetabular notch is considerably higher than the acetabulum as in other therizinosaurians including the early-branching Falcarius, but in theropods, the dorsal margin of the acetabulum is subhorizontal with the ventral aspect of the preacetabulum [19].

The supracetabular crest is relatively mediolaterally deep, and entirely capped the femoral head. The dorsoventral height of the postacetabular portion gradually reduces posteriorly in lateral view. It is subrectangular in shape, with a blunt posteroventral corner. This feature is already present in the earliest-branching therizinosaur Falcarius, and is a character of all therizinosaurians. The posteroventral aspect of the ilium is deflected laterally at a right angle to the vertical ramus. The brevis fossa is shallow, subcircular and oriented mediolaterally, which is similar to coelurosaurians generally [8, 43].

The pubic peduncle of B. inexpectus is longer than the ischiadic peduncle, as in therizinosaurians, dromaeosaurids, and Archaeopteryx [8, 43], but the length is subequal in earlier-branching therizinosaurians (e.g., Falcarius [19]). The pubic peduncle is equidimensional, unlike that of earlier-branching Falcarius and Jianchangosaurus, in which the anteroposterior length is as twice that of the mediolateral width; whereas in later-branching therizinosaurians, the mediolateral width is two or three times longer than the anteroposterior length ([19, 20], Fig 9). Beipiaosaurus inexpectus is intermediate between these values. The middle of the pubic peduncle is posteriorly concave, which is also seen in other late-branching therizinosauroids, including Lingyuanosaurus, Suzhousaurus, and Nanshiungosaurus [21, 22, 30]. The articular facet of the pubic peduncle is oriented anteroventrally, which when combined with the morphology of the proximal pubis creates an apropubic pelvis. The ischiadic peduncle is peg-like. These characters are similar to Falcarius and Jianchangosaurus [19, 20]. There is a prominent antitrochanter on the dorsolateral surface of the acetabulum, which rounds out the acetabulum in lateral view.

Pubis

Both pubes are preserved, lacking proximal and distal ends (Fig 8A). There is a slight curvature of the distal shaft creating a sigmoid shape. The shaft is anteroposteriorly compressed and drop-shaped in cross-section as in Falcarius [19], but different from that of other late-branching therizinosaurians including Alxasaurus, Segnosaurus, Nothronychus, and Shuzhousaurus, which have more transversely flattened shafts [8, 30, 31]. The pubic apron is compressed anteroposteriorly, and might have extended more than half the length of the shaft as in Falcarius [19], but due to the fact that both ends are missing, the proportions cannot be confidently calculated. The pubic boot in B. inexpectus is yet unknown. The ischial boot from the 2003 specimen was erroneously compared to the pubic boot of Falcarius in Zanno [19]; this error was subsequently corrected in Zanno [3].

Ischium

Two incomplete ischia are present, preserving the proximal portion of the right ischium and the shaft and distal portions of both the right and left ischia ([11], Fig 8D; [8], Fig 8B). The ischium is estimated to be subequal or slightly shorter than the pubis. The relative length of the ischium is shortest in Falcarius, which is only about 2/3 the length of the pubis; in Jianchangosaurus, the ischium is about 20% shorter; and in late-branching therizinosaurians, the length of these two elements are subequal [19, 20].

Ischia are slightly curved posteriorly and mediolaterally compressed. The lateral surface is slightly convex and the medial surface is flattened. The proximal portion is damaged, but bears a fan-shaped expansion in lateral view, and might be similar to Faclarius, which possesses a longer iliac peduncle than pubic peduncle [19].

On the anterior surface of the mid-shaft, closer to the proximal end, there is a prominent, dorsoventrally expanded obturator process. It is different from the condition of late-branching therizinosaurians, which have a hypertrophied and distally positioned obturator process [19, 20]. The distal point of the obturator process in B. inexpectus first projects anterodorsally and then anteroventrally, forming a sinusoidal process, unlike in Falcarius and Jianchangosaurus, in which it points anteriorly [19, 20]. The position of obturator process in B. inexpectus and Jianchangosaurus is relatively close to the mid-shaft, which is similar to that of tyrannosaurs and early-branching ornithomimosaurs [41, 44]. On Falcarius, the obturator process is positioned more distally, as in dromaeosaurs, troodontids, early-branching birds, and oviraptorosaurs [18, 19, 36, 40, 45–50].

The distal end of the ischium bears a prominent, anteriorly expanded, and semicircular boot, in medial view. The anterior margin is relatively pointed and convex, and the posterior margin is round and blunt. A prominent distal ischial boot is different from that observed on Jianchangosarus, Alxasaurus, and Nothronychus, in which the boot is only expanded or thickened slightly [6, 20, 27].

Femur

The right femur is preserved and exposed in anterior view (Fig 9A). Both B. inexpectus and Falcarius possess relatively gracile femora that display a mosaic of late-branching maniraptoran and early-branching coelurosaurian features [19]. The femur of B. inexpectus is somewhat intermediate between the recurved condition of Falcarius and the early-branching straight femur of many other therizinosauroids, including Jianchangosaurus, Lingyuanosaurus, Erliansaurus, and Neimongosaurus [20, 21, 23, 32].

The femoral head of B. inexpectus in anterior view is perpendicular to the long axis of the shaft, similar to Falcarius and Jianchangosaurus [19, 20]. This feature is different from that of late-branching therizinosaurians, such as Lingyuanosaurus, Alxasaurus, and Nothronychus, which possess a dorsomedially rotated femoral head [6, 21, 31]. The femoral head is large and bears a distinctly rounded head and weakly constricted neck, similar to the condition in Jianchangosaurus, but different than in Falcarius and Lingyuanosaurus, which have a more distinct and constricted femoral neck [19, 21]. As in Falcarius and Jianchgosaurus, the femoral head of B. inexpectus is continuous with the greater trochanter. This is unlike the condition in late-branching therizinosaurians such as Lingyuanosaurus, Nothronychus, and Neimongosaurus, which have a depression between the femoral head and the greater trochanter in anterior view [19–21]. This depression is not only present in late-branching therizinosaurians, but also in oviraptorosaurians and alvarezsaurs [19, 40, 51]. However, the absence of this feature in early-branching therizinosaurians indicates that it is not synapomorphic for these clades.

The lesser trochanter of B. inexpectus is wing-like and separated from the greater trochanter by a narrow and deep cleft, which is a character present in early-branching coelurosaurs [8, 19]. Both Falcarius and B. inexpectus possess an alariform lesser trochanter, but the shape is cylindrical in Alxasaurus and Jianchangosaurus, and even reduced in Alxasaurus [6, 19, 20]. The fourth trochanter projects from the posterior surface of the femur, with a ridge shape that is transversely thin and proximodistally long. The cross-section of the femoral shaft is subtriangular.

In anterior view there is a slight depression separating the medial condyle and the lateral condyle on the distal femur. In anterior and distal view, the distal condyles are asymmetrical, with a slightly larger and more extensive medial condyle than lateral condyle, which is opposite to that of Falcarius, which possesses a more extensive lateral condyle [19].

Tibia

Both tibiae are preserved, and the right tibia is relatively complete (Fig 9A and 9B). In general, the shape of the tibia of B. inexpectus is gracile and slender, with some proportions that are more primitive than those of late-branching therizinosaurians.

The posterior surface of the right tibia of B. inexpectus is exposed and bears an asymmetrical proximal end in posterior view. On the proximal end, the medial condyle is dorsally higher and positioned more proximally, which is similar to that of Falcarius [19]. This asymmetrical proximal end in Falcarius corresponds with the less extensive medial condyle of the femur. However, this is not the case for B. inexpectus because the medial condyle of the femur is more distally extensive.

The tibia has a relatively straight shaft and its cross-section changes from subtrangular proximally to anteroposteriorly flattened distally. Due to the preservation position, the lateral side of the right tibia cannot be observed, but in the partial left tibia, there is a prominent fibular crest extending to the mid-shaft. Although it is damaged, it can be determined that it is more developed than in Falcarius [19], and less developed than in late-branching therizinosaurians such as Nothronychus and Erliansaurus, which have fibular crests that extend distally to the mid-shaft [31, 32].

The distal articular facet of the tibia of B. inexpectus is anteroposteriorly narrow and transversely broad, with a blunt and robust medial condyle, similar to Falcarius. But the medial condyle of Falcarius is orientated anteromedially [19], whereas in B. inexpectus it is orientated medially. The lateral condyle is large and semicircular in shape to support the fibula.

Fibula

An incomplete left fibula is preserved, lacking the distal end (Fig 9B). In general, the fibula is much more slender and more gracile compared to tibia, especially the distal portion. The fibula of B. inexpectus lacks a medial fossa on the proximal portion, as in other therizinosaurians, oviraptorosaurians, and dromaeosaurs [19, 26, 52]. Similar to Alxasaurus and some avialans, the medial surface of fibula is relatively flattened [6, 8, 53].

Tarsus

The right astragalus, calcaneum and a distal tarsal are preserved and exposed in posterior view (Fig 9C). They are unfused with the distal tibia, proximal metatarsals, and with each other. Lack of fusion may be the result of ontogeny, but in Faclarius these elements are also not fused even in the largest individual [19]. As in other therizinosaurians, the astragalar condyle is reduced, so it only capped a portion of the distal end of the tibia. In Faclarius, the astragalus and the calcaneum are relatively larger and cap the distal tibia and fibula entirely [5, 8, 19, 31].

The astragalus consists of an asymmetrical and robust, saddle-shape body, with a significantly larger medial surface. In posterior view, the medial aspect is thick proximodistally, and gradually narrows laterally. This condition is shared between B. inexpectus and Falcarius [19]. However, reduction of the astragalar body in late-branching therizinosaurians causes this feature to be absent in late-branching members [19]. As in other therizinosaurians, B. inexpectus also possesses a tall ascending process. The ascending process and the medial margin of the body is inset, with the base of the ascending process rising vertically.

The calcaneum is sub-oval and disk-shaped [8], with a slightly convex surface on the medial side. According to Xu et al. ([8], Fig 2e), a single distal tarsal is present, which attaches to the proximal surface of metatarsal IV. However, this element can no longer be located.

Metatarsus

Five elements of the right metatarsus are preserved, and in relatively complete condition (Fig 9C) [8]. However, due to the position of preservation, only portions of these elements are exposed and can be observed. As in Falcarius and Jianchangosaurus, B. inexpectus has a typical functionally tridactyl, and relatively gracile pes, in contrast to late-branching therizinosaurians, which have a stout and tetradactyl pes [8, 19, 20]. The metatarsus of B. inexpectus is compact proximally and elongate in general (~39% the length of the tibia). This ratio is longer than other late-branching therizinosaurians but shorter than Falcarius and Jianchangosaurus, as well as most theropods, for this ratio is typically over 45% [6, 8, 19, 20].

Metatarsal I of B. inexpectus is relatively robust, with a tapered and flattened proximal portion for articulation with metatarsal II. Metatarsal I articulates with metatarsal II on the mid-shaft and does not contact the tarsus, in contrast to the functionally tetradactyl pes of late-branching therizinosaurians.

In medial view, metatarsal II is slightly sigmoidal, with a proximal portion that is slightly curved anteriorly and a distal portion that curves posteriorly. In proximal view, the proximal articulation surface is mediolaterally narrow, oval in shape, and the lateral surface is flattened to correspond to the medial surface of metatarsal III. Metatarsal II is slightly narrower anteroposteriorly in the mid-shaft, especially the anterior surface, which slopes more than the posterior side, but it is still oval in shape (anteroposterior length is longer than the width) in general and expanded distally. The distal end of Metatarsal II of B. inexpectus is fan-shape in medial view and expanded distally, with a smooth medial surface, unlike Falcarius, which has a subcircular distal end and collateral ligament pits [19].

Metatarsal III and metatarsal IV are longer than metatarsal II. Metatarsal III is the slenderest and the longest of the metatarsals, and it is transversely compressed. According to Xu et al. ([8], Fig 2e), metatarsal IV and metatarsal V are preserved. However, metatarsal V and the proximal end of metatarsal IV can no longer be located.

Pedal phalanges

Pedal elements are disarticulated and partially broken, so it is difficult to identify them. Five pedal phalanges are preserved and exposed relatively well, and we tentatively identify them as phalanxes I-1, I-2, II-1, III-1, and IV-2 or 3 (Fig 9C).

A well-exposed phalanx near metatarsal I is tentatively identified as phalanx I-1. This phalanx is relatively robust, with a subcircular proximal articulation surface. The cross-section becomes narrower from the proximal to the distal mid-shaft. Both the ginglymoid articular surface and extensor ligament pits are poorly developed on the distal end, but the collateral ligament pits on the sides are deep and well-developed and positioned centrally. The distal articular surface of this phalanx is relatively symmetrical. A single pedal ungual is preserved next to the referred phalanx I-1 that we interpret as phalanx I-2. It is short and curved, and smaller than any manual ungual [8].

Near the referred phalanx I-1, there is an elongate element interpreted as phalanx II-1, which possesses a subcircular proximal articular surface. Although it is poorly developed, an extensor ligament pit can be seen on the ventral side of the distal end. The shaft is curved laterally in ventral view. Articulating with the distal end of this phalanx, there is a shorter, more robust phalanx, likely to be phalanx II-2, and beyond this the proximal portion of phalanx II-3. Beneath the second digit rests another phalanx that we tentatively identify as phalanx III-1. This distal portion of this phalanx is exposed in lateral view and the collateral ligament pits of it are shallower than phalanx I-1.

Ungual II shorter than III

When measuring ungual length as a straight line from the tip of the ungual to the ventralmost portion of the articular facet, the ungual of digit three is the longest one in B. inexpectus. This feature differs from other therizinosaurians, including Jianchangosaurus, as well as later-branching Alxasaurus and Erliansaurus [2, 6, 20, 32], in which the ungual of digit two is the longest.

The pre- and postacetabular length are subequal

In B. inexpectus, the pre- and postacetabular of ilium are subequal in anteroposterior length. This feature is similar in oviraptorids and early-branching ornithomimids [8, 19, 40, 41], but differs from other therizinosaurians, which possess relatively longer preacetabular portions of the ilium, including the earliest-branching member Falcarius and later-branching Nothronychus and Segnosaurus [19, 31].

Equidimensional pubic peduncle of ilium

In B. inexpectus, the anteroposterior length and width of the public peduncle is approximately the same. This is a transitional feature linking early-branching to late-branching members, and although it is found in other coelurosaurs, it is currently unique among therizinosaurs. In earlier-branching therizinosaurians, such as in Falcarius and Jianchangosaurus ([19, 20], Fig 9), the anteroposterior length is greater than its width, whereas in later-branching members (e.g. Suzhousaurus [30], Nanshiungosaurus [22], and Segnosaurus [54]), the width is significantly greater than its length.

Straight ulna

In B. inexpectus, the ulna is straight as in most other therizinosaurian taxa (including Jianchangosaurus, Alxasaurus, Nothronychus, Erliansaurus, and Therizinosaurus [6, 20, 26, 32], but the ulna of the earliest-branching member Falcarius is bowed [2]. Therefore, a straight ulna appears to be a synapomorphy of Therizinosauroidea, and a reversal among coelurosaurs.

Among other coelurosaurian dinosaurs, a straight ulna is present in medium-bodied (e.g., Sinornithomimus [55]) and large-bodied taxa (e.g., some ornithomimids and Gallimimus [56], Tyrannosaurus [44], and Gorgosaurus [57]). In many smaller sized maniraptoran dinosaurs (e.g., Microraptor [47], Heyuannia [58], and Confuciusornis [59]), the ulna is bowed as in Falcarius.

Blunt termini of furcula

In B. inexpectus, Falcarius [19], and Jianchangosaurus [20], the furcular termini taper to a point. This is different from the robust and blunt termini in Neimongosaurus [23]. The blunt and robust condition may be a synapomorphy of Therizinosauridae. It is likely that the evolution of blunt termini has functional implications; however, further research is needed to understand the impact of this trait. Moreover, it is difficult to determine whether this feature is a synapomorphy for Therizinosauridae or just an autapomorphy for Neimongosaurus because currently the preservation of this element is rare among the clade.

Broad intraclavicular angle

As mentioned by Zanno [3], Falcarius possesses an acute angle (approximate 104 degrees) compared to B. inexpectus and Neimongosaurus (approximately 150 degrees). Therefore, a wider intraclavicular angle may be a synapomorphy for Therizinosauroidea.
